Producing complex, dimensionally strict FRP (Fiberglass Reinforced Plastic) parts forces a difficult choice. Manufacturers must frequently choose between high-cycle tooling costs and labor-intensive open molding. Open molding relies heavily on manual labor. This approach introduces variability and limits production scalability. Conversely, high-pressure methods demand massive capital for heavy presses. They also require expensive matched metal tooling. Finding the right balance is crucial for long-term project viability.

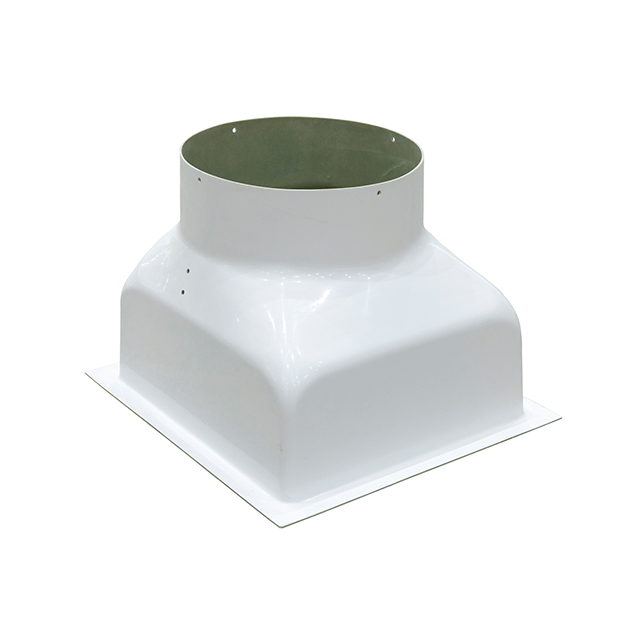

resin transfer molding bridges this gap effectively. As a closed-mold process, it demands precise engineering. You also need comprehensive flow simulation and an upfront tooling investment. However, it delivers repeatable, high-quality results. Parts emerge completely finished on both sides.
This guide breaks down exact volume thresholds. We will explore geometry requirements and potential tooling risks. You will learn how to evaluate supplier capabilities. Ultimately, this information will help you determine if this method is the most viable path for your composite manufacturing project.
Volume Sweet Spot: RTM is financially optimal for mid-volume production (typically 500 to 10,000 units per year), bridging the gap between open molding and high-pressure compression molding.
Surface & Structural Requirements: It is the preferred method when parts require a smooth, finished surface on both sides (A and B surfaces) and highly controlled fiber-to-resin ratios.
Risk Mitigation: Success relies heavily on upfront flow simulation and mold design to prevent dry spots, resin washout, and costly tooling rework.
Supplier Selection: Evaluating a resin transfer molding supplier requires assessing their in-house simulation capabilities, mold engineering expertise, and quality control frameworks.
We define this method briefly as a highly controlled closed-mold process. Catalyzed resin is injected under positive pressure into a mold cavity. This rigid cavity already contains a dry fiber preform. The pressure forces the liquid matrix through the reinforcement network. It expels air through strategically placed vents. Once the cavity fills completely, the part cures under pressure. This creates a highly consolidated composite structure.
Engineers choose resin transfer molding fiberglass because it yields superior mechanical properties. High fiber volume fractions easily reach up to 60 percent. Void content drops significantly compared to manual lay-up techniques. Positive injection pressure drives trapped air out of the laminate effectively. This density improvement translates directly to higher strength-to-weight ratios. Aerospace and automotive sectors rely heavily on these structural guarantees.
Design flexibility stands out as a primary engineering advantage. You can consolidate multiple components into a single molded part easily.
Molded-in inserts: Metal threads or mounting points sit inside the dry preform before injection. The resin locks them permanently in place.
Core materials: Foam, balsa, or honeycomb cores integrate seamlessly. This creates stiff sandwich panels in one step.
Complex ribbing: Deep structural ribs form naturally during the injection phase.
Consolidating these features eliminates secondary bonding operations. You save significant assembly time. Structural integrity also improves because continuous fibers carry loads across the entire part geometry.
Environmental and compliance factors also drive process adoption. Open molding releases significant volatile organic compound (VOC) emissions. Styrene exposure remains a major regulatory hurdle for composite shops. A closed-mold approach contains these emissions entirely within the tooling. This reduction in off-gassing simplifies environmental compliance. Modern manufacturing facilities view this as a critical operational advantage.
Selecting the right composite manufacturing technique requires comparing competing alternatives. Each process balances upfront capital against long-term piece price.
The primary decision lens here involves comparing labor costs against tooling costs. Open molding requires minimal tooling investment. You only need a single-sided open mold. However, it relies entirely on human operators. Operators manually wet out the fiberglass. This labor-intensive process leads to inconsistent part weights and thicknesses.
Moving to a closed-mold approach eliminates the inconsistency of human operators. The machine controls the injection volume and pressure perfectly. Furthermore, it provides excellent two-sided finishes. Open molding only leaves one smooth surface. The backside remains rough and fibrous. Achieving two smooth surfaces requires rigid, matched molds.
Here, the decision lens shifts to production volume and capital expenditure. fiberglass compression molding suits much higher volumes. Projects exceeding 10,000 units annually benefit greatly from it. Compression molding offers incredibly rapid cycle times. High heat and immense pressure cure parts in minutes.
However, this speed comes at a steep price. Compression molding requires massive capital for heavy heated presses. You must also machine heavy-duty matched metal tooling. These tools must withstand thousands of tons of clamping force. In contrast, standard closed-mold injection uses much lower internal pressures. This allows for lighter, less expensive molds. Mid-volume runs benefit financially from these lower tooling costs.
Sometimes, parts grow too large. The decision lens then becomes part scale and mold pressure limits. VARTM stands for Vacuum-Assisted Resin Transfer Molding.
VARTM uses atmospheric pressure rather than positive injection pressure. A vacuum bag replaces the rigid upper mold half. The vacuum pulls the resin through the dry fibers. This makes VARTM viable for massive parts. Manufacturers use it for wind turbine blades or large boat hulls. Building traditional two-sided rigid tooling for these items would be prohibitively expensive. VARTM sacrifices the smooth B-surface but enables massive scale.
Process Comparison Chart
Process Feature | Open Molding | Resin Transfer Molding | Compression Molding |
|---|---|---|---|
Annual Volume | 100 - 1,000 units | 500 - 10,000 units | 10,000+ units |
Tooling Cost | Very Low | Moderate | Very High |
Surface Finish | Single-sided (A surface only) | Two-sided (A and B surfaces) | Two-sided (A and B surfaces) |
Cycle Time | Hours to Days | 30 Mins to 3 Hours | 3 to 10 Minutes |
Successful part execution requires strict parameter control. Engineering teams must dictate exact material behaviors before cutting any steel.
You must define the right reinforcement architecture carefully. Engineers typically use fiberglass mats, woven rovings, or continuous strand mats. Selecting the wrong material causes severe defects. High injection pressures can push the dry fibers around inside the mold. Industry experts call this fiber washout.
To prevent washout, many manufacturers use continuous strand mats containing a small amount of binder. This binder holds the fibers together during placement. It then dissolves slowly as the liquid matrix flows over it. You can also stitch multi-axial fabrics together. Stitched fabrics resist shear forces during injection. This maintains the intended fiber orientation across complex curves.
Establishing strict resin transfer molding specifications for flow characteristics is non-negotiable. The liquid matrix must possess a low enough viscosity to penetrate tight fiber bundles. If the liquid is too thick, it leaves dry, unimpregnated patches. These dry spots act as failure points under stress.
Gel time requires equally precise calibration. The chemistry must allow enough time for complete wet-out. The entire cavity must fill before the curing reaction accelerates. If the material gels too early, flow stops abruptly. This results in a scrapped part. Engineers use specialized inhibitors and catalysts to fine-tune these flow windows. They adapt the chemistry based on part size and ambient shop temperature.
Setting realistic expectations for dimensional stability prevents downstream assembly issues. Composite materials undergo shrinkage during the cross-linking phase. They also experience thermal contraction as they cool. You must account for these dimensional changes in the CAD model.
Wall thickness uniformity depends directly on your mold material choice.
Aluminum Tooling: Offers excellent heat transfer. It machines easily and costs less than steel. However, it may deform slightly under continuous clamping pressure.
Steel Tooling: Provides the highest dimensional stability. It resists wear from abrasive glass fibers. It represents the best choice for tight geometric tolerances.
Composite Tooling: Uses epoxy and fiberglass to create the mold itself. It offers a low upfront cost. However, it degrades faster and struggles to maintain tight wall thickness over long production runs.
Even perfect chemistry fails inside a poorly designed tool. Recognizing common pitfalls saves months of debugging.
Trapped air represents the most common failure point in closed-mold composite processing. You cannot see inside the steel once the press closes. Therefore, addressing gate and vent placement is critical.
Gates act as entry points for the liquid matrix. Vents allow displaced air to escape. If flow fronts meet before pushing air out of a vent, they trap an air bubble. This creates a void. Engineers must position vents at the absolute highest points of the cavity. They must also place them at the end of the calculated flow paths. Poor venting strategies guarantee dry spots. They force operators to perform expensive, manual patch repairs on finished components.
Skipping mold-filling simulation leads directly to expensive trial-and-error. Software platforms like Moldex3D simulate the entire injection phase virtually. They predict how the liquid will navigate around core materials and tight radii.
Simulation identifies a phenomenon known as race-tracking. Race-tracking occurs when liquid flows faster along the edges of the preform than through the center. It bypasses the dense fibers. The fast-moving edge flow circles around and traps air in the middle of the part. Virtual simulation highlights these risks early. Engineers can then adjust gate locations or add flow restrictions to the CAD model. Modifying digital models costs nothing. Modifying hardened P20 tool steel drains project budgets instantly.
Managing exothermic reactions presents a major challenge in thick part sections. The curing process releases significant heat. Thick cross-sections trap this heat internally.
If the internal temperature spikes too high, the part can crack from the inside out. Excessive heat also degrades the tool surface prematurely. Proper thermal management requires integrating active heating and cooling channels into the mold base. Water or oil circulates through these channels. This system pulls excess heat away from thick areas while keeping thin areas warm enough to cure quickly. Balancing this thermal profile ensures a consistent, warp-free product.
Your chosen manufacturing partner dictates the success or failure of your composite program. A rigorous evaluation process mitigates supply chain risks.
Ask prospective partners about their engineering processes. Do they run predictive flow simulations before cutting tool steel? A primary indicator of reliability is an in-house engineering team. A strong resin transfer molding supplier will not accept your CAD model blindly. They will perform a Design for Manufacturing (DFM) review. They will show you digital flow studies to prove their gating strategy works. Avoid suppliers who rely purely on guesswork or legacy experience without data validation.
Evaluate their flexibility regarding tooling options. Good partners offer tiered solutions. They might suggest epoxy or composite molds for initial prototyping. This validates the design cheaply. They then transition to machined metal for full production.
Furthermore, ask how tool maintenance is factored into the unit cost. Abrasive glass fibers wear away mold surfaces over time. Gate areas erode. Seal grooves compress. Clarify who owns the tool and who pays for scheduled refurbishment. Transparent maintenance agreements prevent sudden price hikes mid-production.
Visual inspection alone cannot verify internal composite health. Look for suppliers that utilize advanced non-destructive testing (NDT).
Ultrasonic Inspection: Sends sound waves through the laminate to detect internal delamination or voids.
Automated Void Detection: Uses specialized sensors to confirm complete wet-out.
Destructive Testing Labs: An in-house lab pulling coupons for tensile and flexural strength proves they monitor batch chemistry rigorously.
Certifications like ISO 9001 or AS9100 demonstrate mature quality control frameworks. These frameworks ensure repeatable mechanical properties across years of production.
Finally, assess their broader capabilities. Can the supplier handle secondary operations? Raw molded parts rarely go straight to an assembly line. They require CNC trimming to achieve final edge profiles. They often need priming, painting, or the installation of complex mechanical hardware.
Consolidating these steps under one roof reduces logistics friction. It eliminates shipping raw parts between molders, painters, and assemblers. Integrated suppliers shrink lead times and take full responsibility for final part quality.
Evaluating this closed-mold process requires a clear understanding of your project parameters. You must balance annual volume, the need for a two-sided finish, and strict structural integrity requirements. Mid-volume runs demanding high fiber fractions and tight tolerances benefit immensely from this approach. It bridges the gap perfectly between inconsistent manual labor and expensive high-pressure press operations.
To move forward effectively, engineering and procurement teams should take immediate action. First, finalize your 3D CAD models, paying close attention to draft angles and uniform wall thicknesses. Second, establish firm annual volume requirements to guide tooling material selection. Finally, request a detailed DFM feedback report from shortlisted suppliers. Use their flow simulation data to validate all tooling estimates before releasing purchase orders.
A: Cycle times generally range from 15 minutes to a few hours. Several factors dictate this speed. Resin chemistry controls the gel and cure rate. Part thickness matters, as thicker sections require slower, cooler cures to prevent exothermic cracking. Finally, heated tooling accelerates the reaction, significantly reducing overall cycle times compared to room-temperature molds.
A: While fiberglass remains the most common and cost-effective reinforcement, the process is highly effective for carbon fiber and aramid applications. High-performance industries frequently inject epoxy matrices into dry carbon preforms. This yields aerospace-grade components exhibiting exceptional stiffness and minimal void content.
A: Tooling costs sit directly between cheap open molds and expensive compression molds. A basic composite tool might cost a few thousand dollars. However, complex CNC-machined steel or aluminum tools with active thermal management generally range from $15,000 to $60,000. Costs scale based on part size, tolerance requirements, and chosen mold materials.
A: Extremely thick sections pose significant challenges. The curing matrix releases heat. In thick laminates, this trapped heat causes internal cracking or localized degradation. Engineers bypass this limitation by incorporating lightweight core materials like closed-cell foam or balsa wood. Cores add structural thickness without adding mass or generating excess heat.
